Explosion Proof LED Signal Beacon

Back

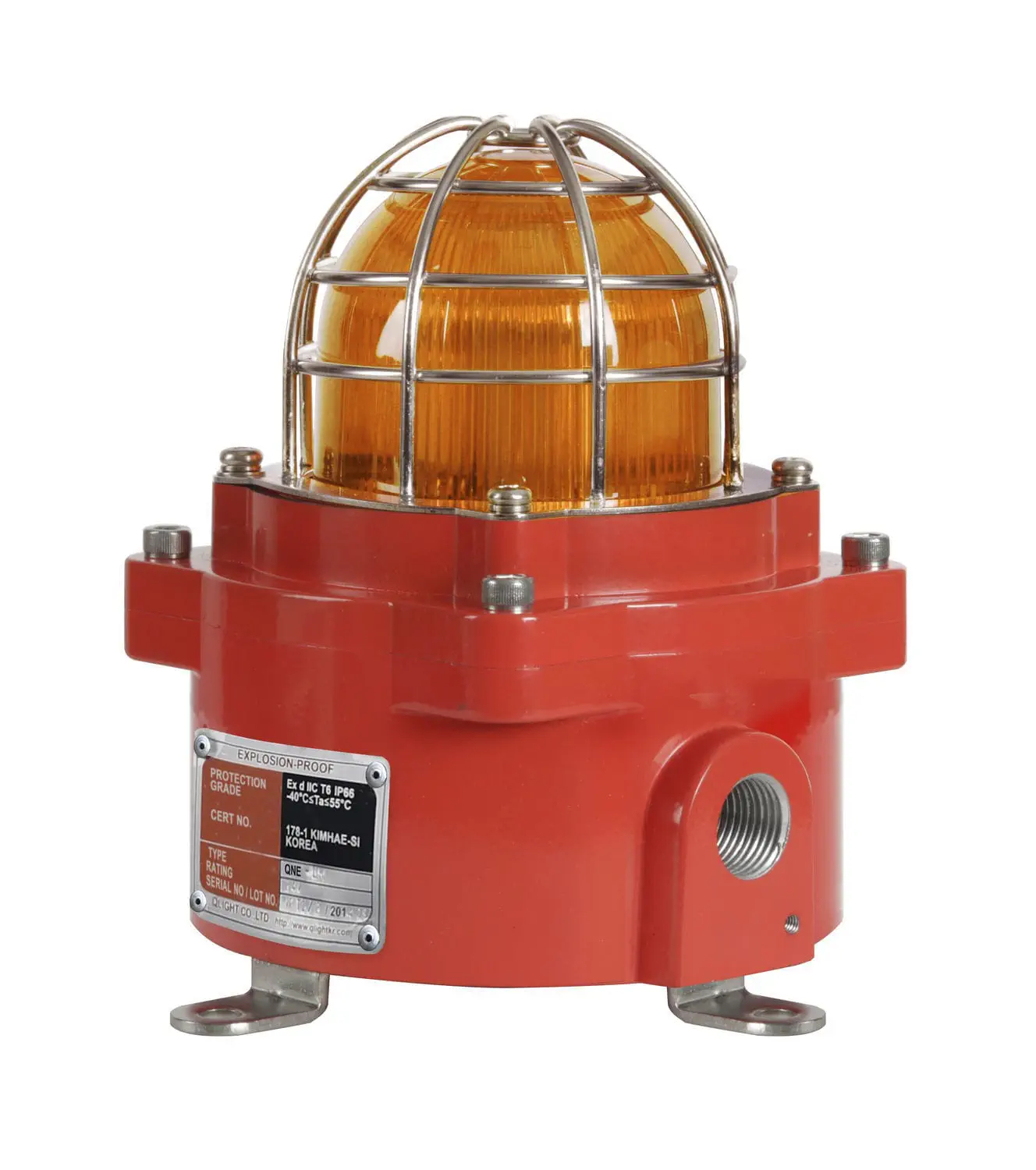

Explosion Proof LED Signal Beacon

Interested Product Brochure

Brand: Qlight

Warranty: 1 Year

Product overview

Flame proof LED signal light that features steady/flashing, strobe, and simulated revolving light functions in one unit
Explosion proof, multifunctional, and compact LED signal light designed for use in explosive gas environments with Ex d C rating
Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
Features superior durability with aluminum housing(QNE)
STS housing provides superior durability and corrosion resistance(QNE-SUS)
Fully enclosed structure with protection rating of IP66

Explosion Proof LED Signal Beacon

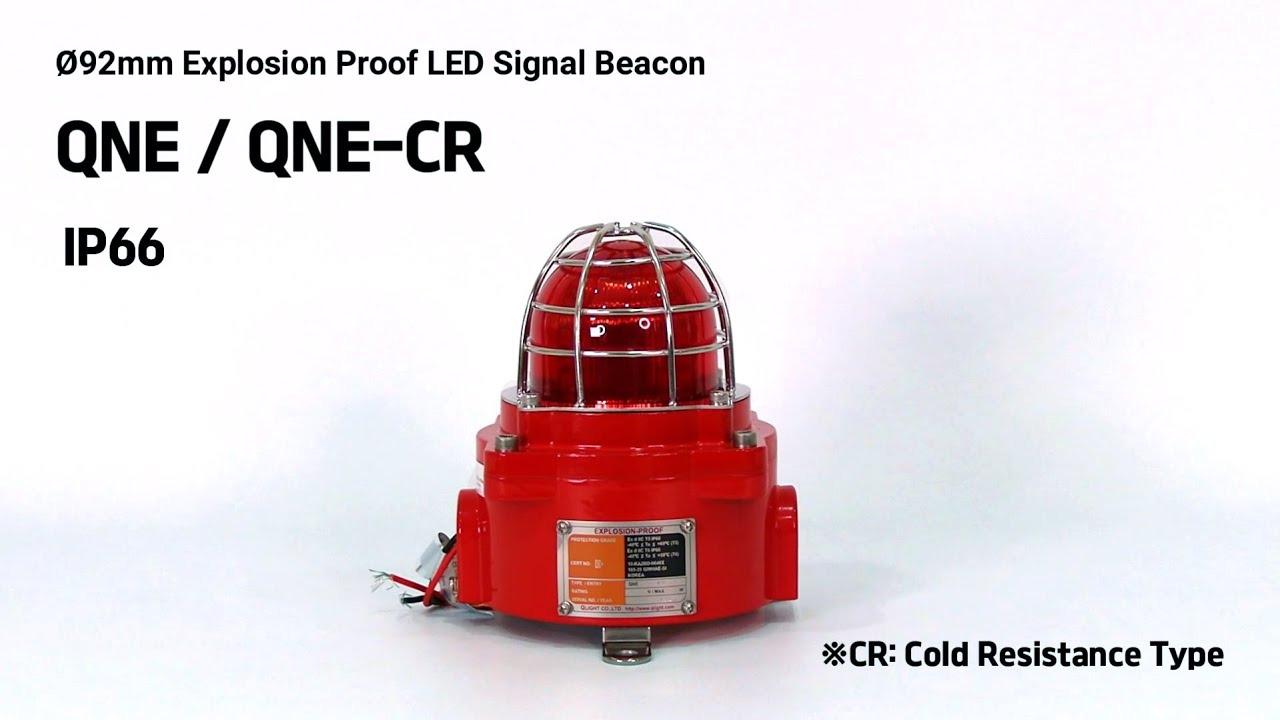

2 Videos

Product overview

Flame proof LED signal light that features steady/flashing, strobe, and simulated revolving light functions in one unit
Explosion proof, multifunctional, and compact LED signal light designed for use in explosive gas environments with Ex d C rating
Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
Features superior durability with aluminum housing(QNE)
STS housing provides superior durability and corrosion resistance(QNE-SUS)
Fully enclosed structure with protection rating of IP66

Technical details

Specifications

Model No. QNE

Materials Lens-Tempered glass, Filter-PC, Bracket-STS316L, Protection cage-STS316, Housing-Al(QNE), STS316L(QNE-SUS)

Ambient operating temperature -40°C ≤ Tamb ≤ +60°C(T5)-40°C ≤ Tamb ≤ +50°C(T6)

Certificates IECEx, ATEX, NEPSI, KCs, CCC

Housing standard color Red, MUNSELL No. 7.5BG 7/2

Additional Details

Cable entry: 1/2″ NPT

Flashing rate(LF type): 60-80 flashes/min.

Strobe rate(LS type): 70-80 flashes/min.

Simulated revolving rate(LR type): 120-140RPM
