Explosion Proof LED Tower Lights

Back

Brand: Qlight

Warranty: 1 Year

Explosion proof LED tower lights with Ex d IIC rating can be used in explosive gas environments
Excellent distance visibility by using a special reflector to aggregate the light from the LED filament
Ø80 LED tower light mounted inside the flame proof housing
Aluminum housing provides excellent durability
Long-lasting high intensity LED light source
Terminal box located inside the housing for easy power wiring
Direct mount type and wall mount type available depending on application needs.
Flashing rate: 60-80 flashes/min
Selectable between steady/flashing mode with proper wire arrangement
Lens color arrangement : R-Red A-Amber G-Green B-Blue W-White

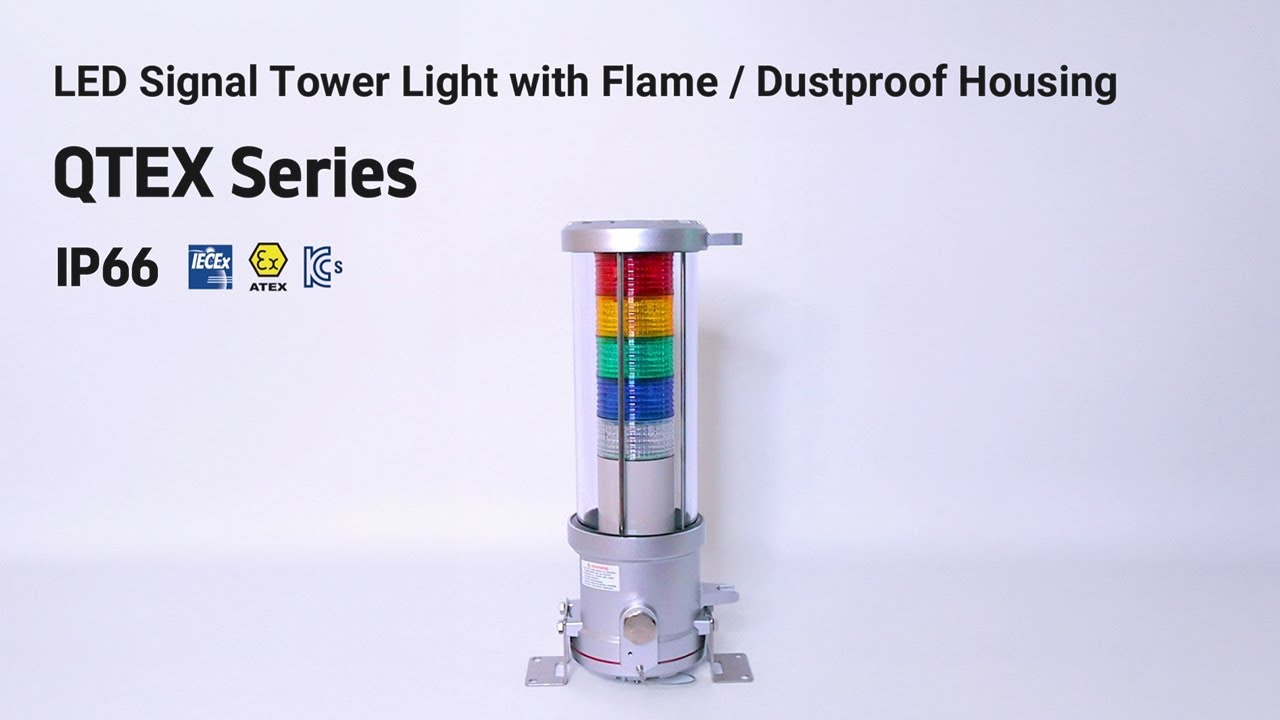

2 Videos

Explosion proof LED tower lights with Ex d IIC rating can be used in explosive gas environments
Excellent distance visibility by using a special reflector to aggregate the light from the LED filament
Ø80 LED tower light mounted inside the flame proof housing
Aluminum housing provides excellent durability
Long-lasting high intensity LED light source
Terminal box located inside the housing for easy power wiring
Direct mount type and wall mount type available depending on application needs.
Flashing rate: 60-80 flashes/min
Selectable between steady/flashing mode with proper wire arrangement
Lens color arrangement : R-Red A-Amber G-Green B-Blue W-White

Technical details

Materials Lens-Tempered glass │Filter lens-AS │Housing-Al │Reflector-Heat resistant ABS

Dimension Diameter : Ø144 │Height : 472(Direct mount type), │457(Wall mount type)

Voltage DC:12V,24V│AC:95V-230V

Protection rating IP 66

Flashing rate 60-80 flashes/min

Model No.: QTEX

Product Detail
